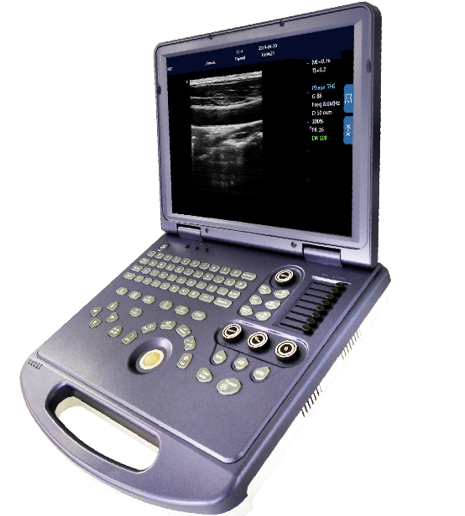

VSM-15 Animal Ultrasound Machine

1、Description of equipment use: mainly used for the inspection of animal abdomen, reproductive system, urinary system and other organs

2. Performance introduction

2.1 The 160° adjustment range of the 15-inch high-definition monitor greatly demonstrates the high-end definition of two-dimensional ultrasound images

2.2 Scanning mode: convex array/linear array/micro-convex

2.3 The metal + nickel-plated process probe interface improves shielding and texture and brings a longer life cycle. It has an automatic identification function to support more than 6 types of probes.

2.4 Operation interface: Chinese/English Windows 7 operating system

2.5 Display mode: B, B+B, 4B, B+M, M, PW

2.6 Built-in lithium battery 18650 international standard battery, battery capacity 15600mAH , battery life ≥ 2.5H

2.7 Real-time battery indicator and charging indicator

2.8 Movie playback: 200-1500 frames adjustable

2.9 Local magnification 4 times, 10 levels adjustable

2.10 Body position markers: 20 types (dog 4, cat 2, horse 6, cow 6, sheep 2)

2.11 Frequency range: 3.5MHZ: 2.0MHz, 3.0MHz, 3.5MHz, 6.0MHz;

6.5MHz: 5.5MHz, 6.0MHz, 6.7MHz, 7.5MHz;

7.5MHz: 7.5MHz, 8.6MHz, 10MHz, 12MHz;

6.0MHz: 5.5MHz, 6.0MHz, 6.7MHz, 7.5MHz;

Harmonic frequency range: 3.5MHZ: 4.0MHz, 4.3MHz, 4.4MHz, 4.6MHz;

6.5MHz: 5.7MHz, 6.0MHz, 6.3MHz, 6.7MHz;

7.5MHz: 8.0MHz, 8.6MHz, 9.2MHz, 10MHz;

6.0MHz: 5.5MHz, 5.7MHz, 6.0MHz, 6.3MHz;

2.12 Adjustable scanning range: 7.5: 79-100%; 3.5: 46-60%; 6.0: 68-90%; 6.5: 91-120%

2.13 Measurement: professional software measurement packages for distance, angle, area stenosis ratio, ventricular output, heart rate, obstetrics, etc.

2.14 The measurement unit can be switched between cm and mm

2.15 There are professional animal obstetric software packages, namely dogs, cats, horses, cattle and sheep.

2.16 Display depth of each probe: 3.5MHz: 90-250mm/6.0MHz: 70-145mm / 7.5MHz: 40-90mm / 6.5MHz: 50-125mm

2.17 With one key full screen function

2.18 Puncture guide function, real-time display of depth following the cursor

2.19 Probe automatic freezing function, the time can be set at will for 10-40 minutes

2.20 One-key recall of case information entry function

2.21 Two storage methods, fuselage solid state drive 128G, support U disk storage (can be stored and read)

2.22 Single image storage time ≤ 1 second

2.23 Display the image storage preview window in real time, and perform operations such as deletion and sharing at any time

2.24 Grayscale: 256 levels

2.25 Dynamic range: 64-192, step 2, with independent buttons, 65 levels of visual adjustment, can be adjusted cyclically

2.26 Overall gain: 2-100, step 2

2.27 8 pseudo-color processing functions

2.28 8 kinds of frame correlation, with independent buttons, visual adjustable, 1-8 can be adjusted cyclically

2.29 5 kinds of lines are related, with independent buttons, visual adjustable, 1-5 can be adjusted cyclically

2.30 Can adjust up and down mirror, left and right mirror, black and white mirror

2.31 Transplant color ultrasound harmonic imaging technology to obtain more complete harmonic signals based on the fundamental wave, and perfect image presentation brings diagnostic confidence.

2.32 With more than 4 inspection modes, not only the parameter combination is optimized in advance, but also the measurement software package and related reports follow

2.33 Report generation function: It has functions such as direct editing of reports, multi-image selection generation, storage, etc., which is convenient for quick inspection operations.

2.34 Support pulse Doppler mode, which can measure blood flow, blood flow peak, pulse index, etc.

2.35 Interface: VGA interface, 2 USB interfaces, DICOM interface

2.36 Auxiliary equipment such as laser/inkjet printers and barcode scanners can be connected
