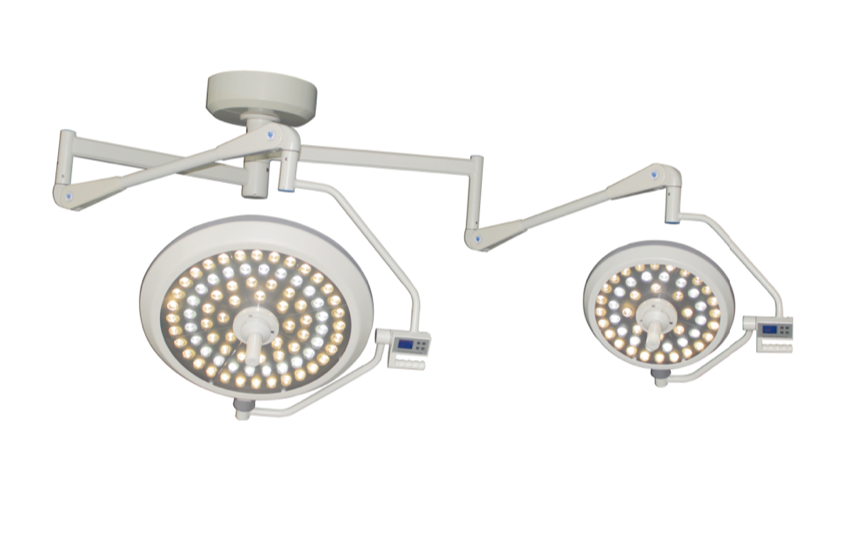

LED Surgical Shadowless Lamp

Product model:

LED 70/50

Detailed introduction:

Model: LED 70/50Name: LED surgical shadowless lamp Features:LED surgical shadowless light has the characteristics of color temperature that is different from the ordinary surgical shadowless light... View details >
Message/ Purchase

Product Name: LED Surgical Shadowless Lamp



Features

LED surgical shadowless light has the characteristics of color temperature that is different from the ordinary surgical shadowless light source. The high color rendering of Ra≥97 increases the color difference between blood and other tissues and organs of the human body . During venipuncture , the color change of the lighting allows doctors to better see the veins

Ultra-long LED life , up to 80,000 hours without replacing lamp beads , 40 times longer than halogen lamps . Under the same brightness , the energy consumption of LED is only 1/10 of ordinary incandescent lamps and 1/2 of halogen lamps .

◇ The imported LED cold light source has no infrared radiation , and the nano-coating radiator creates an excellent heat dissipation effect . Using light-emitting diodes as the light source , no temperature rise , no ultraviolet radiation , no stroboscopic.

Perfect shadowless light effect , scientific arc focus design , cleverly avoid the occlusion of the doctor's head and shoulders , to achieve ideal shadowless effect and super deep lighting.

Imported high-performance lamp beads , efficient space layout , and the energy-saving effect is better than other international famous brands under the same illumination .

Using two lamp beads with similar color temperature to avoid the dizziness of the surgeon.

Both R9 and R13 are greater than 90, which helps to clearly distinguish blood vessels and tissues.

Using a single 1W lamp bead , the heat generated is relatively small.

Impact resistance , recyclable waste and no mercury pollution.

Bright lighting : The unique LED light source display provides the best lighting of the operation area up to 16LUX.

High adaptability : The color temperature is variable to ensure the best tissue resolution for various surgeries.

Precise and bright illumination : The revolutionary shadow elimination technology provides uniform and consistent illumination for superficial and deep cavity surgery.

Consistent aseptic operation : realize the whole process of aseptic operation , and save the time-consuming preparation for surgical rotation .

Digital influence technology : Provide a variety of video solutions including full HD, which can be integrated into the hospital's integrated operating room system .

User comfort : The user can adjust the intensity of the light source by touching the sensor on the handle.


Parameters

Model

LED 70/50

Illumination (adjustable)

40,000-180,000Lux 30,000-160,000Lux

Number of bulbs

80 48

Bulb Type

led

Average bulb life

≥80,000h

Color temperature (adjustable)

3700K ~ 5000K

Display index (adjustable)

85~98

focus depth

50-180cm

spot diameter

160-280mm

Dimming

1%-100%

Power consumption

(W) 80 48

The surgeon's head heats up

﹤1℃

voltage

AC100-240V 50/60HZ



Detailed Packing List

Name

Quantity

Five hole lamp holder

1 set

balance arm

1 piece

column

1 set

Mounting screws

4

Expansion screw

4

Sterilize the handle

1 set

bakelite knob

1

Backup fuse

2

certificate

1

user's manual

1
