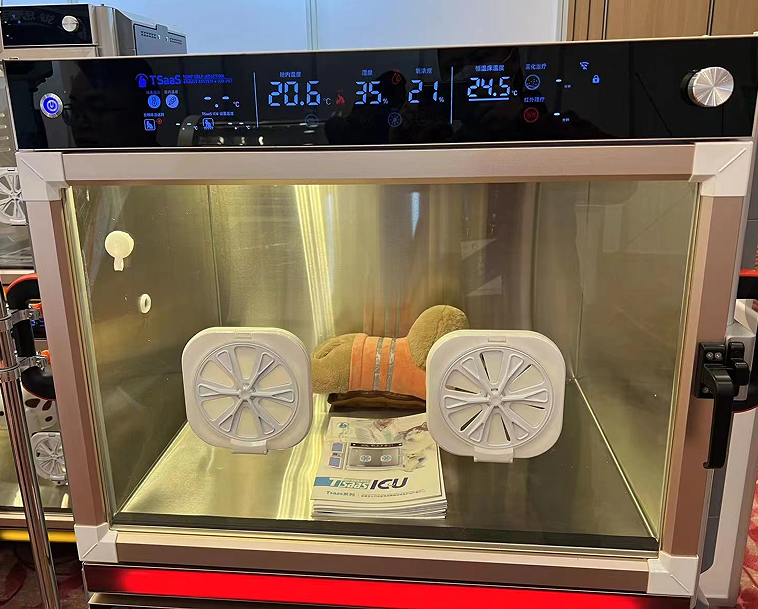

Full-function Animal Medical Monitoring Animal ICU Monitoring Chamber (Single Cage )

Product model：

I CARE - 100

Detailed introduction:

Model: I CARE - 100Product name: full-function animal medical monitoring animal ICU monitoring cabin ( single cage ) Features:1. Microcomputer control, automatic temperature adjustment, temperature a... View details >
Message/ Purchase

Product Name: Full-function Animal Medical Monitoring Animal ICU Monitoring Chamber( Single Cage )



Features

1. Microcomputer control, automatic temperature adjustment, temperature and humidity display control. The display mode is switched between the set temperature and humidity and the measured temperature and humidity, and the operation is clear at a glance.

2. Multi-level adjustable lighting to simulate different natural and therapeutic environments.

3. Equipped with an air filter, which has good dust removal and antibacterial effect, and is easy to disassemble and wash.

4. Equipped with a negative ion generator to create medical-grade air purification for small animals and shorten the healing time.

5. Equipped with ultraviolet sterilization system, efficient sterilization (including bacterial propagules, spores, mycobacteria, coronaviruses, fungi, rickettsia and chlamydia, etc.), and the sterilization function is completely separated from the treatment function control, which is safe and reliable to use.

6. Equipped with an external medical-grade nebulizer, which is suitable for direct nebulization therapy and respiratory therapy for pets.

7. Equipped with a carbon dioxide concentration monitor to ensure the safety of animal life in real time.





Parameter

Model

I CARE- 1 00

Size

External dimensions: 750×750×790mm (length X width X height )

Chamber size

650×650×600mm ( length X width X height )

Gross weight

35kg

Operation screen

10-inch high-definition smart touch screen

Monitoring parameters

Temperature, humidity, oxygen concentration, carbon dioxide concentration

control parameter

Flow rate (float meter), oxygen concentration, temperature, humidity, light (LED light, blue light, IR light, UV light), negative ion generator, atomizer

LED lights

Warm light: LED, adjustable in ten levels, simulates different natural and therapeutic environments. LED lamp cold light: ultraviolet sterilization UVC, 253nm blue light treatment blue light, 415nm, LED; infrared IR lamp power 100W, 1-5min adjustable

Air conditioning adjustment method

Independent split cooling or compressor cooling/PTC heating

set temperature

15-38℃

Temperature control accuracy

±0.5℃

humidity control

≤50%, dehumidification method: exhaust air

Oxygen concentration control range

21-60%

Oxygen control accuracy

±1%

Carbon dioxide concentration monitoring

300-5000PPM

Carbon dioxide detection accuracy

±10PPM

CO2 removal method

soda lime, exhaust

Power supply

AC100V/220V, 50/60Hz, grounded

Power

Maximum power consumption 1.3KW; average power consumption 0.5KW

Negative ion purification

Negative ion purification, creating medical-grade air purification for small animals, shortening the healing time

High concentration of negative ions, 7.2x10^6PCS/cm^3*4

Medical nebulization

Maximum atomization rate: 0.2ml/min

Atomized particle size: 0.5-2μm

Noise: ≤ 4 0dB

Printer type

Integrated thermal paper printing

Function

timed printing

Emergency ventilation

Programmable emergency ventilation hatch

Gas Filtration Treatment

Equipped with air filter, good dust removal and antibacterial effect, easy to disassemble and wash

Alarm function

Abnormal oxygen concentration, abnormal temperature, abnormal sensor, abnormal CO2 concentration, abnormal door switch

Noise

≤50dB

Optional

Oxygen source (non-standard) Oxygen generator/oxygen cylinder (optional) Medical nebulizer
