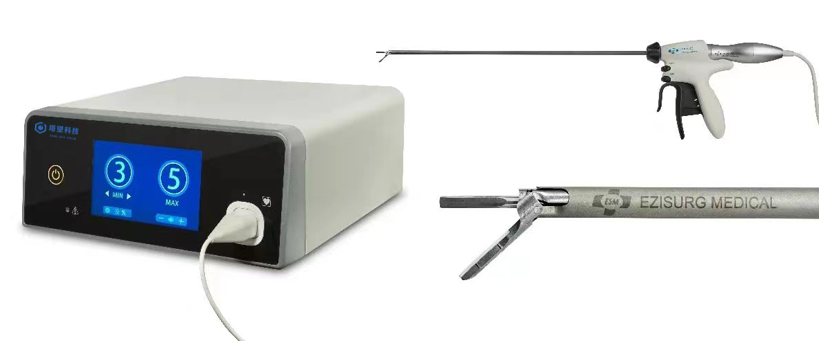

Animal Ultrasound Knife

Product model：

UK-100

Detailed introduction:

Model: UK-100Product Name: Animal Ultrasound Knife Features:1. Precision: 55.5KHz working end cutter head vibration frequency, 20-120μm amplitude, to ensure accurate cutting and coagulation, to ach... View details >
Message/ Purchase

Product Name: Animal Ultrasound Knife



Features

1. ★Precision: 55.5KHz working end cutter head vibration frequency, 20-120μm amplitude, to ensure accurate cutting and coagulation, to achieve tissue coagulation.

2. Reduced smoke, clearer surgical field of vision, CF-type host equipment, to ensure patient safety, clear sound feedback for closing the trigger

3. The main unit adopts a full touch screen, which is easy to operate. There are 5 working surfaces of the curved cutter head, and the multi-function is integrated.

4. High-performance piezoelectric ceramic chip, stable amplitude output

5. The coagulation burst pressure of 842mmHg and the average blood vessel closure time of 5.89 seconds achieve fast and effective cutting and coagulation effect


Parameter

Model

UK-100

Tool head parameters

One Φ5mmX length 360mm , two Φ5mmX length 230mm

Power consumption

3Amp

Normal closing time

6S

Output voltage

125VAC RMS

Power

Up to 35 Watts

Maximum current

4A

Power Supply

100-240VAC , 50Hz /60Hz

fuse

T4A, L250VP

Working frequency

472kHz±5kHz

Specified load

25

Output waveform

sine wave

Crest factor

15

Operating ambient conditions temperature

10C to 40C

Whether to block

Yes

handle cable length

2.8m

Main fuse

F3.15AL250V

Humidity

30-75% non-condensing

Atmospheric pressure range

700hPa-1060hPa

Size (length, width and height)

370mm x 380mm x 150mm

Weight

8.2kg



System Specifications

1. Components required for system operation: host: UK-100 ; handle: eHP - 01; ultrasonic cutter head: SHC23A, SHC36A; optional components; foot switch: FSU - 01

2. Degree of electric shock protection: CF type applied parts

3. Type of electric shock protection: Class 1

4. Degree of protection against water damage: UK-100: General equipment; FSU - 01: IPX8

5. 3.15Amp, glass, package size 5x20mm, quantity: 2 )

6. Transportation and storage conditions: Temperature: -35C to +54C; Humidity: 10-95%, no condensation; Atmospheric pressure range: 700hPa-1060hPa

7. Power cord: UK-100 host provides a power cord that conforms to the CCC national standard; plug type: national standard CCC plug; socket: IEC60320C13 straight non-angle power cord socket; maximum length: 2.5m; rated current: 10A; Cross-sectional area: 1.0㎡ copper wire; rated voltage: minimum 250VAC; wiring: international

1 8. Foot switch cable: maximum length: 2.9m; shielded or not: yes

1 9. Weight: UK-100 :  8.2kg; FSU - 01:  1.9kg

10. Overall size: UK-100: 370 mm x 380 mm x 150 mm; FSU - 01:  350mm x 190mm x 65mm

11. Standard 3 cutter heads

It can be sterilized in plasma , phthalic acid , low temperature sterilization , Xinjieer, 0.1% hypochlorous acid, etc.

(High temperature sterilization damages lifespan)
