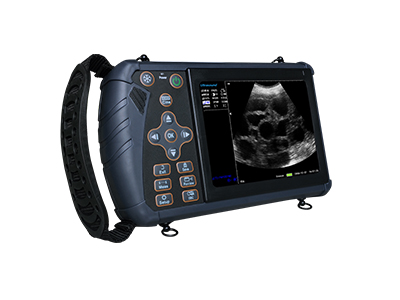

VSM-S1 Veterinary Ultrasound Diagnostic System

Technical Parameters

1. Description of equipment use: mainly used in the examination of abdominal organs of various animals such as pigs, cattle, sheep, horses, pets, etc.

2. Display: 5.6-inch LED medical display

3. Scanning mode: convex array/linear array

4. Operation interface: Chinese/English interface

5. Display mode: B, BB, BM

6. Electronic focus: three-segment electronic focus, adjustable focus position

7. Frequency range: 3.5MHz (2.5/3.5/5.0), 5.0MHz (3.5/5.0/6.5), 6.5MHz (5.0/6.5/7.0), 3.5MHz (2.5/3.5/5.0), 7.5 (6.5/7.5/8.0) )

8. Image mirroring: mirror left and right, flip black and white, flip up and down

9. Measurement: distance, perimeter, area, obstetrics

Animal measurement packages: cattle (BTD, BUD), horses (EGSD, ESD), pigs (HLA, SLA) sheep (SCRL), dogs (HD, BD, GSD, CRL), cats (HD, BD)

10. Movie playback: 255 frames, which can be played back continuously or viewed frame by frame

11. Permanent storage: 8G, which can be stored and read, and can be expanded to larger TF cards

12. Grayscale: 256

13. Battery capacity: 2600mAh, can work continuously for about 3 hours

14. Overall gain: 0-255, near field gain: 0-255, far field gain: 0-255

15. Image processing: NR 10-68 left and right step 1, up and down step 10; IP 0-15 up and down step 1;

16. 8 kinds of pseudo-color processing;

17, 15 levels of magnification:

Multi-stage probe depth: 3.5MHz (57-230) Microconvex (54-226) Rectal (49-221) Backfat (46-207) Linear array (46-207)

18. Interface: probe interface, USB interface, TF card interface, 14V charging interface

19. Brightness: 01-15; Contrast 01-15

20. Power indicator, and charging indicator, net weight 950 grams, data can be measured in real time

Optional probes: 3.5MHz convex array probe, 5.0MHz micro-convex probe, 6.5MHz rectal probe, 3.5MHz backfat probe, 7.5MHz linear array probe

S1 initialization setup steps

language settings:

Entering the language preset mode: Press and hold the "Freeze" button for more than 10 seconds after booting up (if you press other buttons after booting up, it will be invalid), and then press "Down", "Left", "Up" and "Right" will pop up the preset parameter menu.

Language: 002 (Press the up and down keys to select the item and then press "OK" to enter to adjust, and then press "OK" after the adjustment is completed. 001 represents Chinese, 002 represents English)

Probe Settings:

Probe menu: Press and hold the "Freeze" key for more than 10 seconds after powering on (if you press other keys after powering on, it will be invalid), and then press "down", "left" and "up" in sequence after hearing the long beep of the buzzer , "Right" to pop up the preset parameter menu.

Probe1: 001 (Press the up and down keys to select the item and then press "OK" to enter to adjust, and then press "OK" after the adjustment is completed. Among them, 001 is C050 convex array, 002 is C020 microconvex array, 003 is L064 rectum, 004 It is L160 backfat, 005 is L040 high frequency)
