Product Description

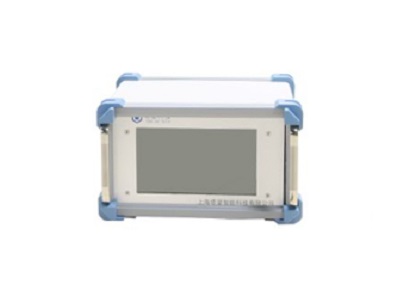

The carbon dioxide controller uses a precise mass flow controller to control the flow of the shunt gas, and finely adjust the mixed gas concentration by controlling the ratio of several gases. The operation is simple, connect the gas cylinder, set the required concentration, and directly output the mixed gas of the required concentration.

The carbon dioxide controller can be directly connected to a 100% CO2 cylinder to output the required CO2 concentration mixed gas. The use of carbon dioxide controller can greatly save the cost of purchasing premixed gas.

The carbon dioxide controller can be connected with various culture chambers and culture chambers to continuously provide a stable CO2 mixture. CO2 flow can be adjusted, the range is 0.1L-1L/min, other ranges please inquire.

The carbon dioxide controller has built-in precision sensors and a pre-mixing chamber, which can monitor the CO2 concentration in real time during operation, and can set high and low value alarms.

The carbon dioxide controller has a data storage function, which can store data in a U disk for easy traceability.

Parameters

1. Carbon dioxide sensor: original imported non-dispersive infrared (NDIR) sensor, solid state light source and detector

2. CO2 concentration measurement range: 0-20%

3. CO2 detection accuracy: ±70ppm

4. CO2 concentration control range: 0.5-20%

5. CO2 concentration control accuracy: ±0.1%

6. Gas flow range: 0.1L-1L/min

7. Flowmeter: high-precision mass flowmeter

8. Working conditions: 0-50℃, 0-95%RH without condensation

9. Power supply: 220V

Application

Suitable for CO2 concentration control.

Configuration

 *Our company can provide 3Q verification, provide function customization services according to the special applications and special needs of customers, and also provide related experimental services, please inquire for details.
