Product Description

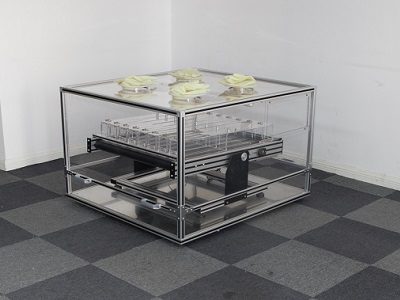

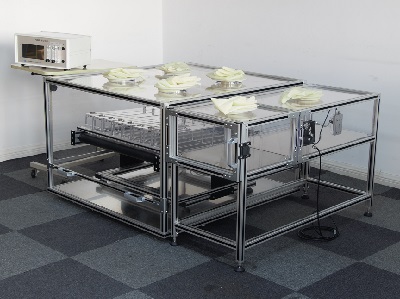

With the deepening of hypoxic training research, researchers have found that hypoxic training is not only used in sports training to improve athletic ability, but also has a great effect on fitness and disease treatment. At present, there have been research reports on the treatment of cardiovascular disease, diabetes, obesity, anemia and other diseases with hypoxic exercise. The animal hypoxic treadmill experimental system developed by Tawang Technology provides a special hypoxic environment for animal training and running experiments, and can realize constant control and regulation of oxygen concentration. It can be used to simulate the physiological hypoxic state in the organism, so that the in vitro research results are closer to the real level in the body; or it can be used to simulate the pathological state of the organism in a special hypoxia, so as to conduct research on related mechanisms and diseases.

Hypoxic training has two loads on the human body, one is the hypoxic load caused by the exercise itself, and the other is the stimulation of environmental hypoxia. The addition of these two loads can maximize the potential of human body functions. By establishing animal disease models, the mechanism and nature of these reactions can be clarified, and the effects of hypoxic training on various physiological functions and pathological changes of the body can be studied, which can provide better guidance for clinical disease diagnosis and treatment.

The animal treadmill is controlled by a 7-inch touch screen. It can be set to be powered on or off, the current size of the electrical stimulation can be adjusted, the corresponding channel can be shielded, and the number of electric shocks or the preset electric shock time can be preset to determine whether the small animal has been stressed. When exhausted, the inclination of the treadmill is adjustable from 0-30°.

Features

1. Applicable animals: rats, mice, etc. For other animals, please inquire

2. Operation mode: 7-inch touch screen operation

3. Monitoring parameters: temperature, humidity, oxygen concentration, carbon dioxide concentration

4. Oxygen concentration measurement range: 0.1%—25.0%, measurement resolution: ±0.01%, good linearity, accurate detection, and temperature compensation mechanism

5. Carbon dioxide measurement range: 0~5%, measurement accuracy: ±30ppm

6. Temperature detection: imported high-precision digital platinum resistance temperature sensor

7. Dynamic curve of oxygen concentration change, intuitively understand the process of oxygen concentration change

8. Equipped with a gas mixing fan for gas circulation to maintain the uniformity of gas concentration in the box

9. The box is made of PMMA material, which is transparent as a whole, which is convenient for observation and lighting

10. Humidity: 0-95%

11. Number of channels: 5 runways, modular design, adjust the number of runways according to needs, each runway is opened independently, and the length is independently adjustable (30~60cm)

12. Motor: The system adopts imported servo motor, with high precision), fast response speed and low noise

13. Motor control: closed-loop feedback control is adopted. High control precision, strong real-time performance, speed control range 0-100m/min

14. Electrical stimulation: the stimulation method of DC constant current is adjustable, the stimulation range is 0-4.5mA, and the step is 0.05mA

15. Signal detection: The system uses current to detect the number of electric shocks, which solves a series of problems in previous tube detection, including slow response, blind spots, poor anti-interference ability, and poor signal accuracy.

16. The number of electric shocks can be preset in the system. When the animal reaches the set number of electric shocks, the experiment ends and various data are recorded.

17. Measurement accuracy: The accuracy of the system to measure the movement distance of animals reaches the centimeter level, and the error is less than 0.1%

18. Self-protection mechanism: The system automatically determines and records the exhaustion time according to the stimulation of the animal, and stops the stimulation of the animal at the same time, effectively protecting the animal

19. Data browsing and printing: The system automatically saves 50 sets of experimental data, the experimenter can browse any experimental data, and at the same time provides printing and uploading to the computer, which is convenient for users to process the data later

20. Electric angle adjustment function, the inclination of the treadmill can be adjusted ±25°, electric control

21. The data is automatically stored, and the COM interface is connected to the computer

22. Test indicators: exercise distance, number of electric shocks, test time

 *Our company can provide 3Q verification, provide function customization services according to the special applications and special needs of customers, and also provide related experimental services, please inquire for details.
