Product Description

The chamber and the monitoring system can be separated, the system is used for rats, rabbits, NHPs and other animals, and the size of the chamber can be customized.

Features

The chamber adopts aluminum alloy frame and transparent PMMA material, which is convenient for observation;

Stainless steel material is optional;

It has a ventilation function to ensure the oxygen supply of animals and prevent the accumulation of CO2 and unpleasant odor

Built-in fan mixer to ensure consistent aerosol concentration in the chamber

An integrated sensor module can monitor parameters in all around ways.

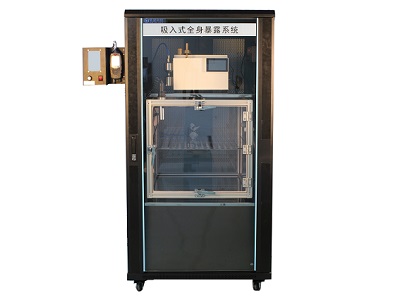

Chamber (Model: WBC-M)

Volume:180L

Dimensions: 700×580×620mm

Accommodates 2 large rat cages or 4 medium rat cages

Other sizes are available to customize

Configuration

Animal Inhalation exposure System (Model: WBE-B)

• Chamber

• Aerosol generators (optional: dry powder, liquid aerosol generator, cigarette smoke generator, diesel exhaust generator...)

• Monitoring system for temperature, humidity, oxygen, carbon dioxide gas source and flow regulation system

• Exhaust gas treatment systems

• (Optional) Aerosol concentration monitoring, particle size distribution detection, etc

Configuration

*Our company can provide customized services according to customers' special applications, requirements, as well as experimental services. Please kindly contact us for more information.
