Portable Respirometer

Product model：

RES-20

Detailed introduction:

Portable respiratory meter is a device for measuring respiratory parameters of large animals. It is simple to operate and eas... View details >
Message/ Purchase

Detailed Introduction

Portable respirometer is a portable device for measuring respiratory parameters of large animals.


Product Description

Portable respirometer is a portable device for measuring respiratory parameters of large animals. It can directly measure relevant parameters by wearing a mask. It is easy to use and carry.


Features

lSuitable for larger animals like dogs and Non-human Primates (NHP)

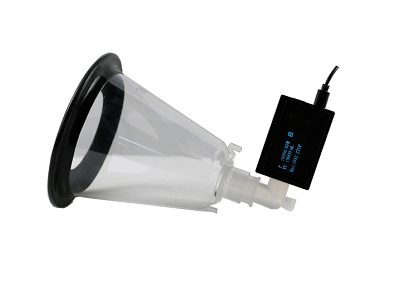

lBreathing mask with rubber seal for direct respiratory measurement

lLCD Displaying Parameters: Flowrate, Tidal Volume (Vt), Peak Inspiratory Flow (PIF), Peak Expiratory Flow (PEF), Inspiratory Time (Ti), Expiratory Time (Te), Minute Ventilation (Mv)

lOriginal data can be stored on a USB drive

lEquipped with analysis software, data can be saved in Excel or TXT format (Customization is available catering to customers' specific requirements)



Test Parameters












lTi: Inspiratory Time (s)

lTe: Expiratory Time (s)

lPIF: Peak Inspiratory Flow (ml/s)

lPEF: Peak Expiratory Flow (ml/s)

lF:Flowrate (breaths per minute)

lVt：Tidal Volume（ml）

lMv：Minute Ventilation（ml）


Applications

lResearches on various respiratory diseases, such as asthma, pulmonary fibrosis, lung injury, ARDS, lung cancer, etc.

lSafety pharmacology: the effect of drugs on the respiratory system

lSleep apnea: monitor animal hypopnea, obstructive apnea, etc.

lEnvironmental Toxicology: The impact of environmental pollutants on animal respiration

lInhalation Toxicology: Toxic effects of toxic substances on the respiratory system

lHigh altitude medicine: The influence of high altitude environment on the respiratory system

lOther occasions where respiratory parameters need to be evaluated


[1] Li Hong Peng,Wang Hai Qin,Li Ning,Zhang Liu,Li Shi Qi,Yan Ya Ru,Lu Huan Huan,Wang Yi,Sun Xian Wen,Lin Ying Ni,Zhou Jian Ping,Li Qing Yun. Model for Identifying High Carotid Body Chemosensitivity in Patients with Obstructive Sleep Apnea.[J]. Nature and science of sleep,2021,13:



*Our company can provide customized services according to customers' special applications, requirements, as well as experimental services. Please kindly contact us for more information.
